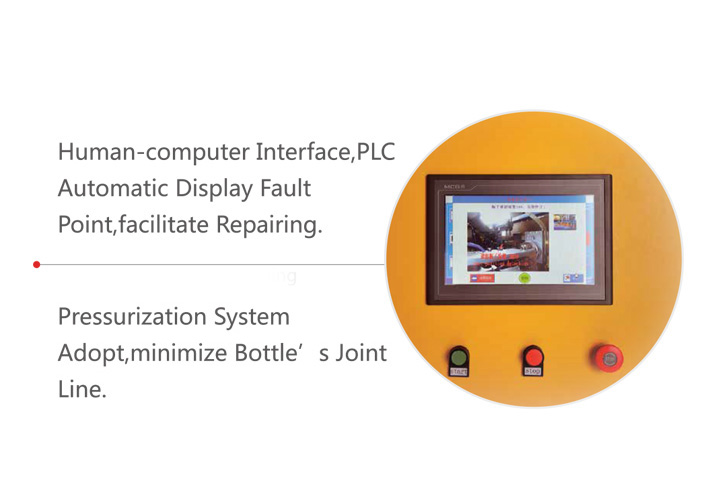

Human-computer Interface,PLC Automatic Display Fault Point,facilitate Repairing.Pressurization System Adopt,minimize Bottle's Joint Line
| Model No. | AUD600-10 | AUD1500-8 | AUD5500-4 |
| number of cavity? | 10 | 8 | 4 |
| clamping stroke? | 90 mm | 120 mm | 200 mm |
| production? | 18000pcs/hr | 9000pcs/hr | 3500pcs/hr |
| total power? | 100kw | 100kw | 100kw |
| actual power consumption | 55kw | 60kw | 55kw |
| pressure for blowing? | 35 kg | 35 kg | 35 kg |
| flow rate for blowing? | 8m3 | 8m3 | 10m3 |
| neck diameter? | 26-32 mm | 26-32 mm | 40-60 mm |
| max diameter | 65 mm | 90 mm | 175 mm |
| max height? | 230 mm | 330 mm | 330 mm |
| machine size LxWxH? | 4.2×2.25×2.3 m | 4.2×2.25×2.3 m | 4.2×2.25×2.3 m |
| auto loader LxWxH? | 3.0×3.0×3.0 m | 3.0×3.0×3.0 m | 3.0×3.0×3.0 m |
| machine weight | 6000 kg | 6000 kg | 6000 kg |
